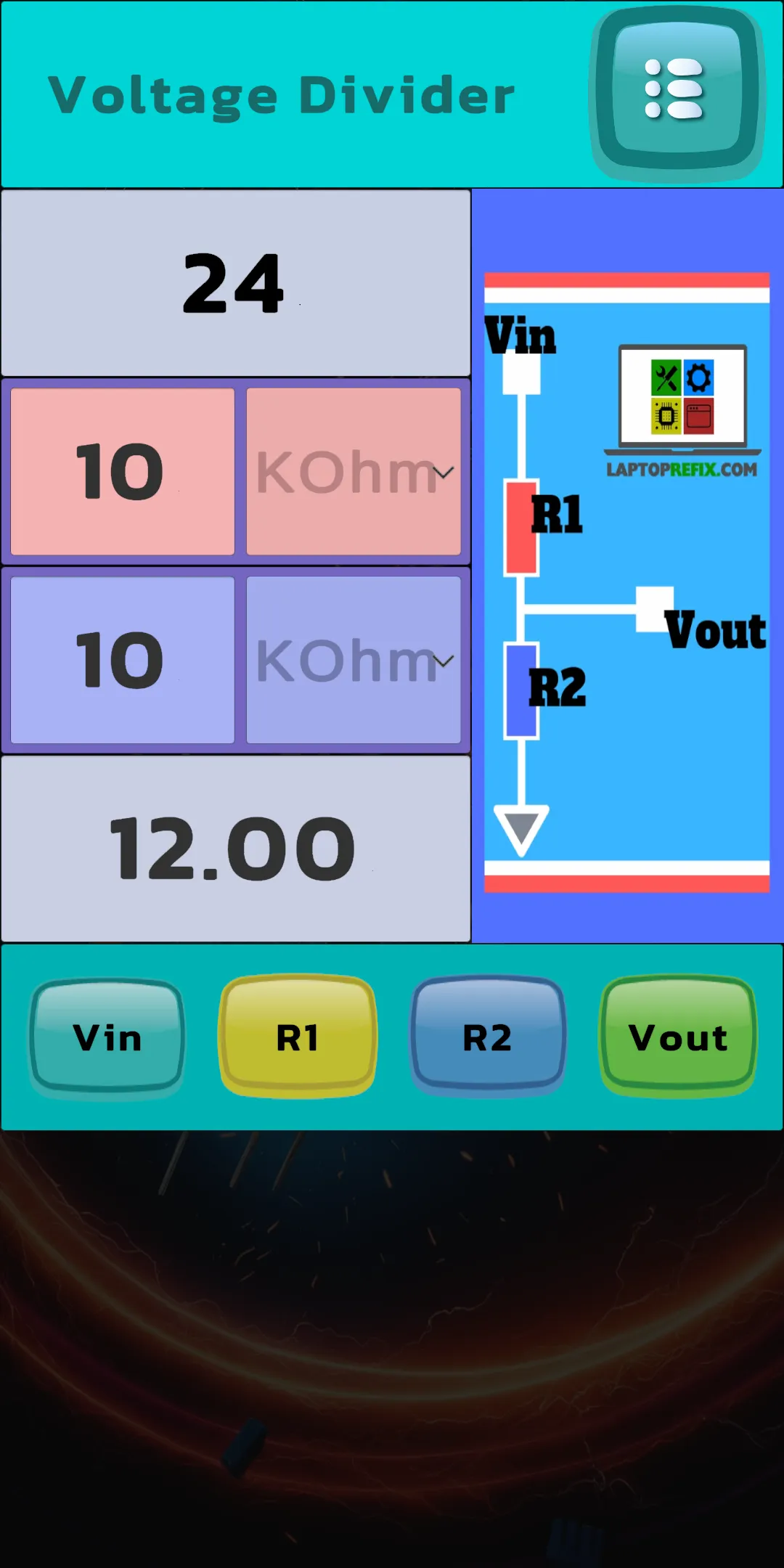

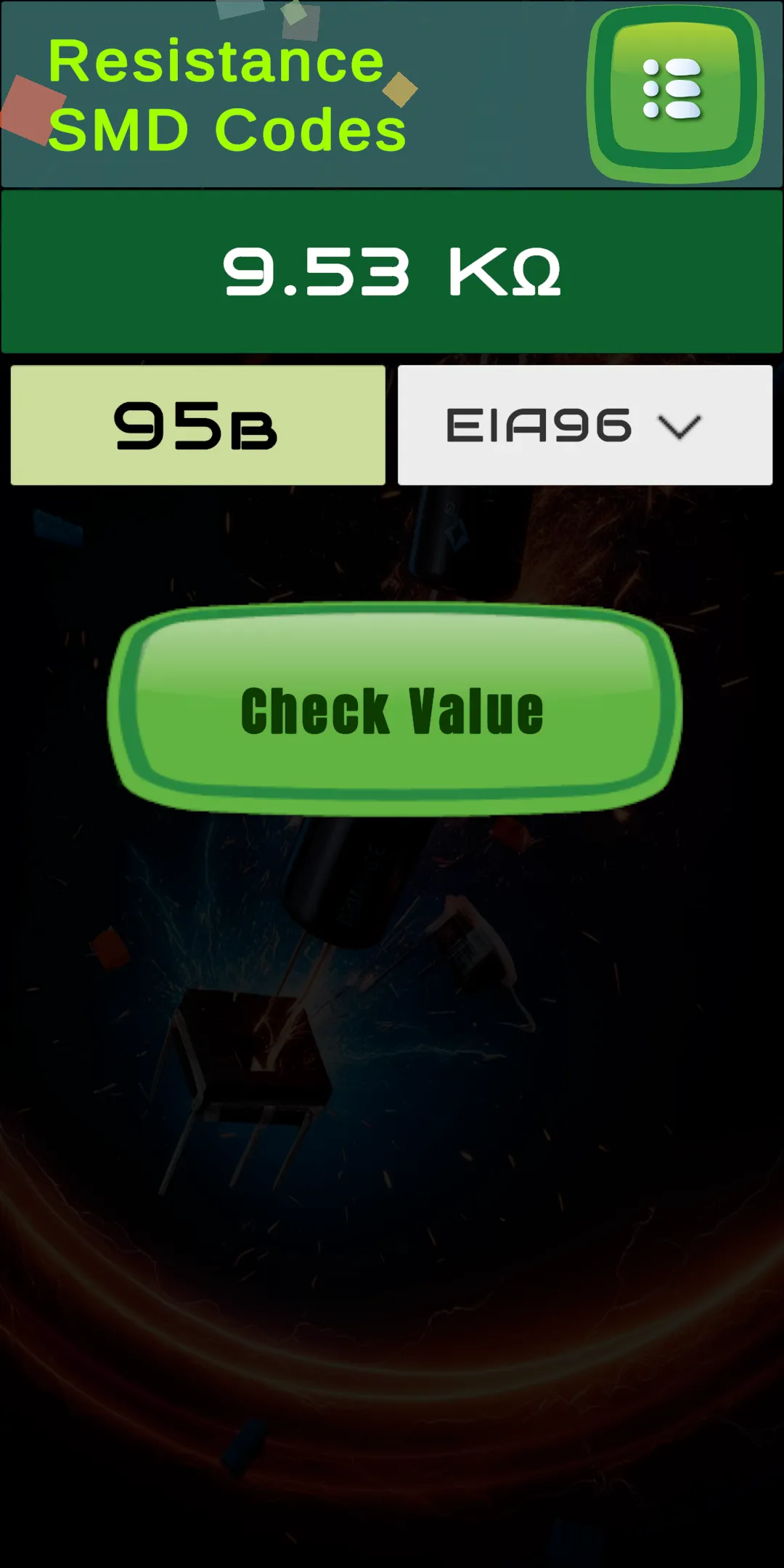

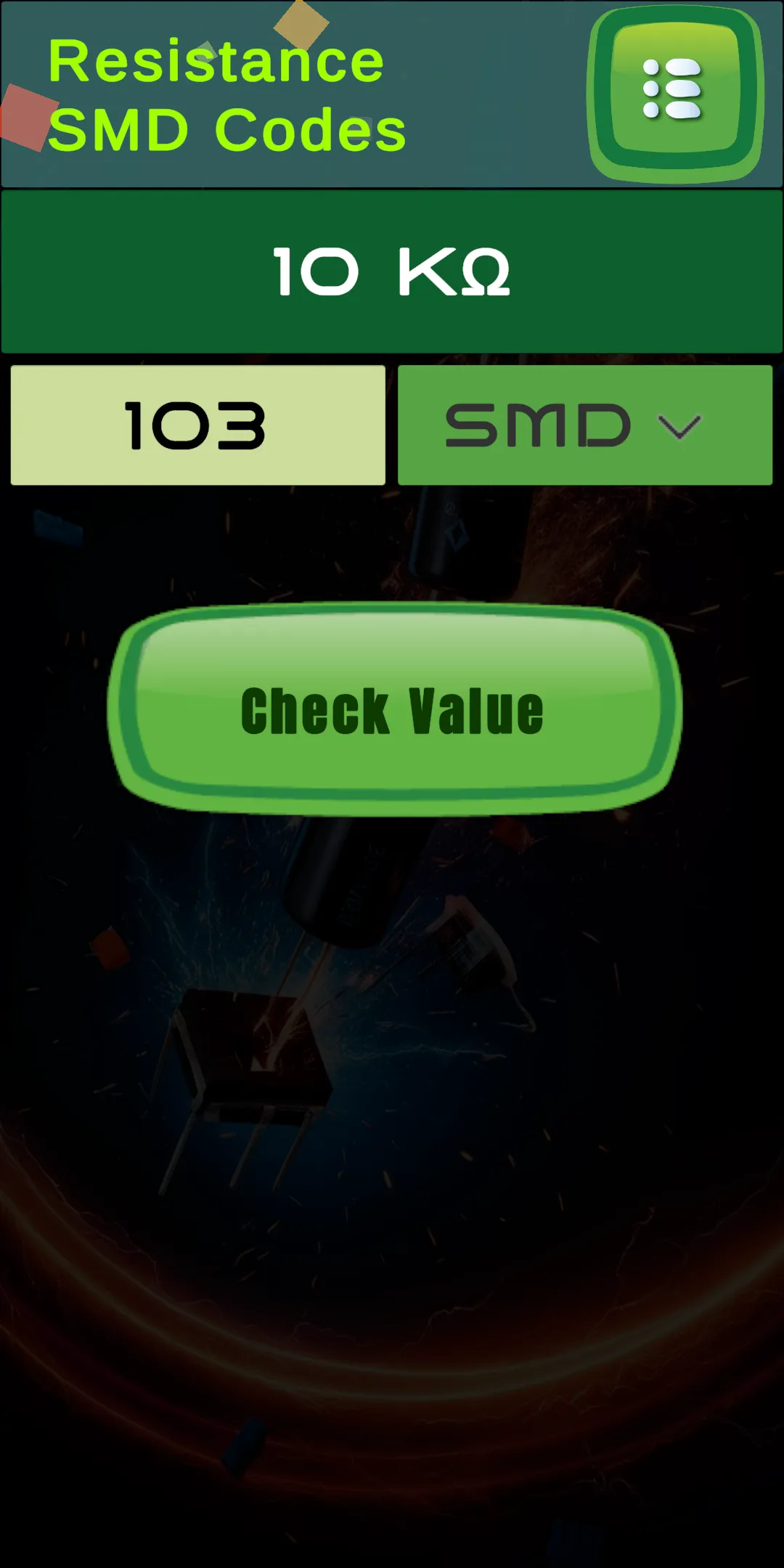

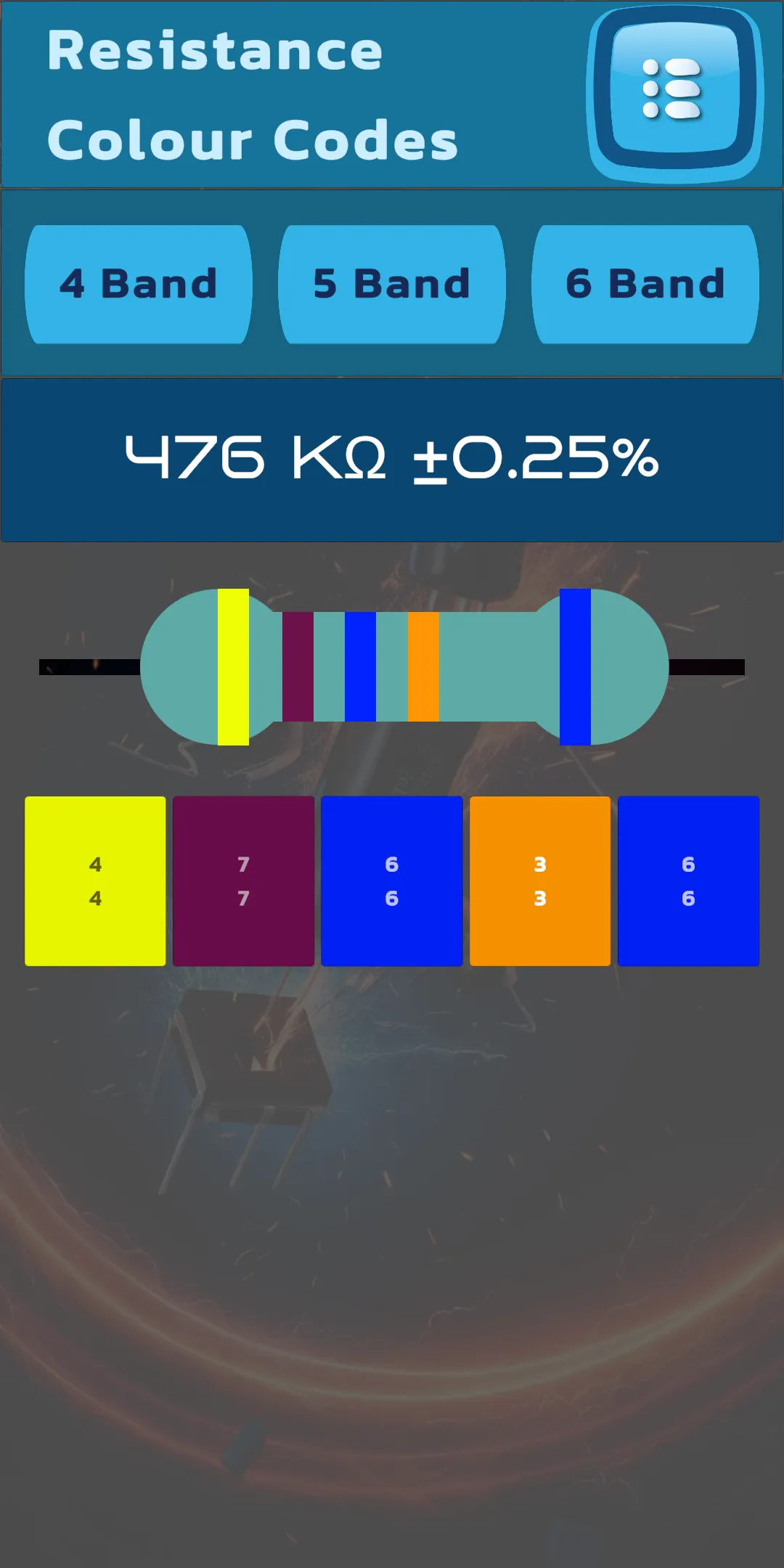

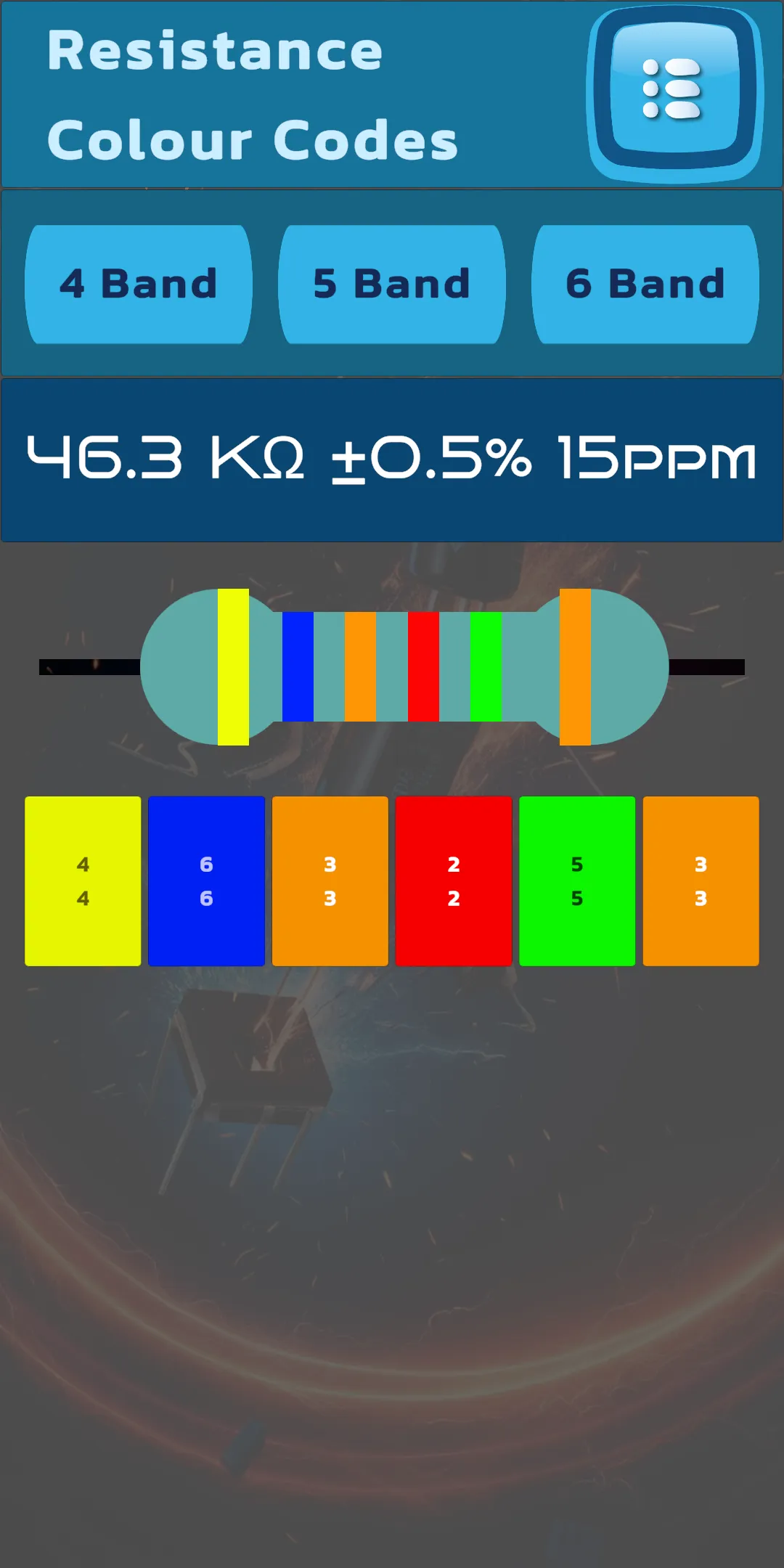

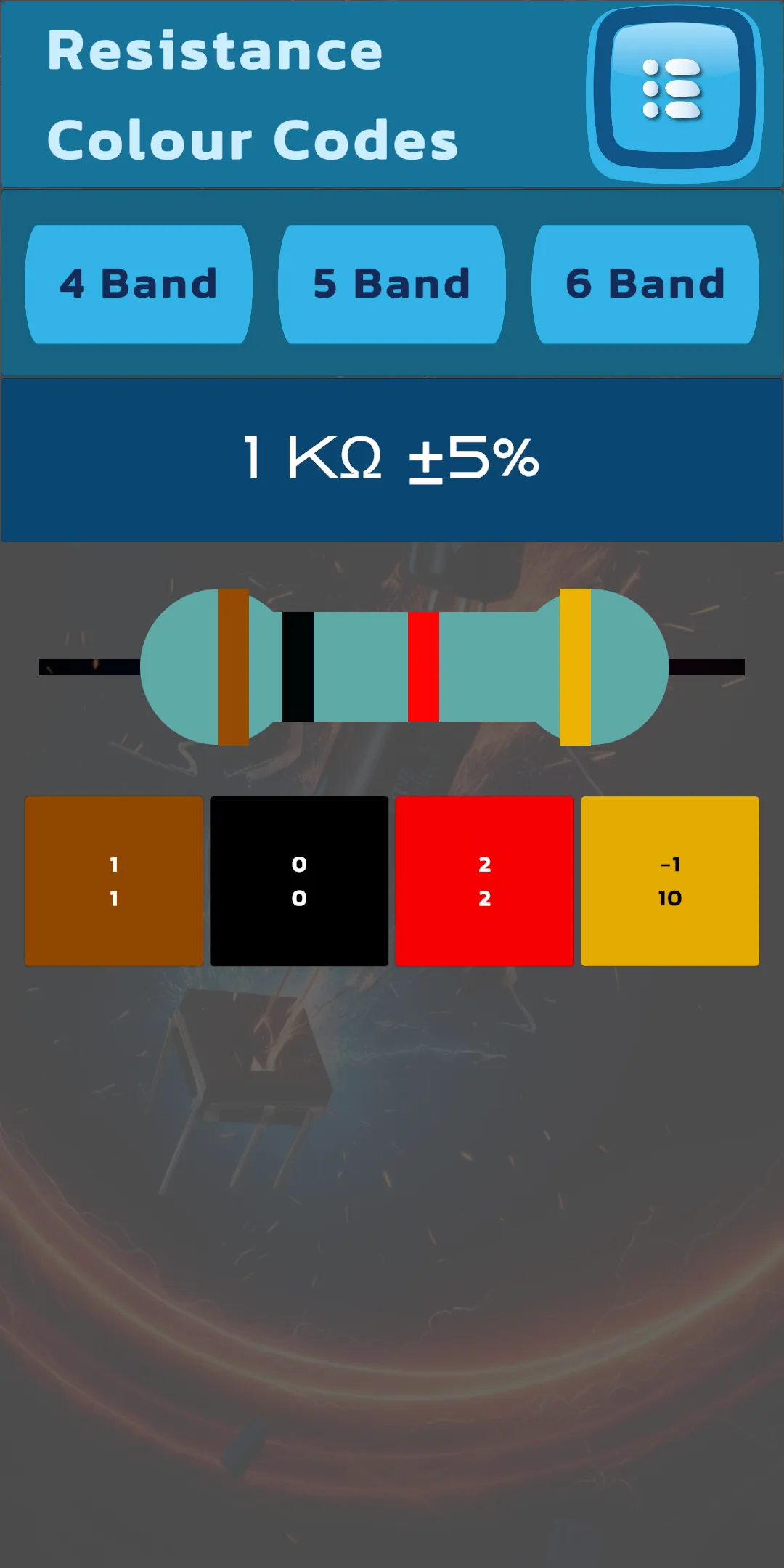

A **voltage divider** is an electrical circuit that is used to reduce the voltage from a higher level to a lower level. It’s one of the most basic and widely used circuits in electronics. ### How It Works: A voltage divider typically consists of two resistors connected in series across a voltage supply. The output voltage is taken from the connection between the two resistors. The principle behind a voltage divider is based on the idea that the total voltage across the resistors is divided between them in proportion to their resistance values. ### Formula: The output voltage \( V_{out} \) in a voltage divider can be calculated using the formula: \[ V_{out} = V_{in} \times \frac{R_2}{R_1 + R_2} \] Where: - \( V_{in} \) is the input voltage across the entire series of resistors. - \( R_1 \) is the resistance of the first resistor. - \( R_2 \) is the resistance of the second resistor. - \( V_{out} \) is the voltage across \( R_2 \). ### Applications: 1. **Signal Conditioning:** Voltage dividers are often used to scale down signals to a level that can be read by analog-to-digital converters (ADCs) or microcontrollers. 2. **Biasing Transistors:** In analog circuits, voltage dividers are used to set the operating point of transistors. 3. **Measuring Voltages:** They can be used in conjunction with a voltmeter to measure high voltages by scaling them down to a safer level. 4. **Reference Voltage:** A voltage divider can be used to create a stable reference voltage in some circuits. ### Limitations: - **Loading Effect:** If the output of a voltage divider is connected to a low impedance load, it can alter the output voltage, leading to inaccurate results. - **Power Dissipation:** Voltage dividers continuously consume power, which might be a concern in battery-powered circuits. Voltage dividers are fundamental in understanding how voltage and resistance interact in circuits, making them a crucial concept in electronics and electrical engineering.
